Λεπτομέρειες:
|
| Διάσταση (L*W*H):: | 25000*1500*2200 | Τάση:: | Απαίτηση πελάτη |
|---|---|---|---|
| Εμπορικό σήμα αναστροφέων: | Delta.Siemens. LG | Ικανότητα:: | 100kg/hr ~ 800 Kg/hr |
| ΟΝΟΜΑ: | Εξωθητής τροφών ψαριών | ||
| Υψηλό φως: | 100kg/hr γραμμή παραγωγής τροφών ψαριών,του δέλτα γραμμή παραγωγής τροφών ψαριών,τρόφιμα κατοικίδιων ζώων 380V που κατασκευάζει τη μηχανή |
||
Fish feed production line machine can be used to producing floating fish feed and sinking fish feed. The floating fish feed pellet machine can make kinds of feed, such as food fish, catfish, shrimps, crab, etc. the fish pellet made by the machine can float on water more than 24 hours. Gelatinization degree can reach 90%, enhance the output of fodders, it is suitable for making floating feed, pet food, fish fodder. The diameter of particle is Φ0.6-16mm. Promising fodder output evenly and continuously.
(1)Raw materials like adopts corn flour, soya meal, fish meal etc. as raw materials
(2)Raw materials Powder Size: 60-80 Mesh.
(3)Raw materials moisture content: 20-25%.
(4)Diameter of Final Pellets: 1mm-15mm (Optional).
(5)Length of the pellets can be adjustable by control the cutting speed.
2.Fish feed production line process flow:
Raw material preparation→Mixing raw material→Conveying→Extrusion→Conveying→Drying→Screening→Oil spraying→Flavoring→Packing
3.Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’local voltage according to different countries.
4.Machines Materials:
All the machines are made by stainless steel 304.
5.Food Equipment:
Mixer---double-screw extruder---air conveyer---roasting oven---automatic flavoring machine
6.Working process:
Put raw materials into feeder, they will be pressed by the screw with high pressure and
temperature which makes the raw material fully cooked and sterilized. Then the pressed
materials will be formed into pellets by shaping mould.It can make different size and
shapes pellets by changing molds. Last the cutter device cut the formed pellets into
different length as required.
7.Sample
8.Details

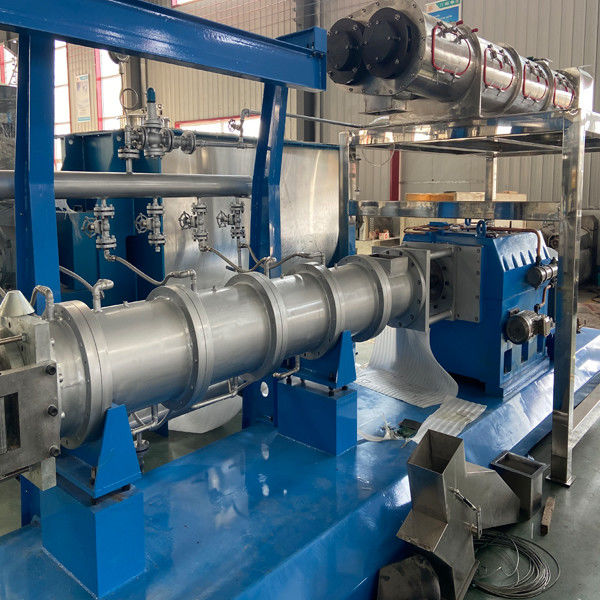

Extruder
Large capacity pet food extruder,which is widely used in puffing food, medicine and food industry.
It can carry out best parameterenactment according to different recipe, water,pressure and temperature, The barrel is heated
by steam.

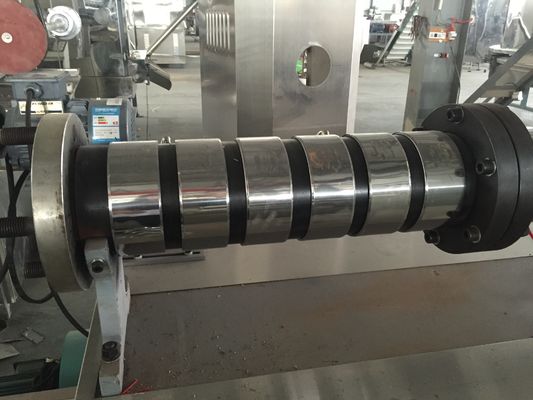

Inside the extruder
9.Mould
These are some molds for pet food, we can change them according to the needs of customers.
10.Our srvice
Saibainuo Company before sales service :
a.) We provide you the suitable solution,which is useful and convenient
b.) We produced the product you need in our factory,you can buy it without any hesitate.
c.) We provide you the factory design and processing line layout and also design for water and electric and gas etc.
d.) With much experienced technical team,we can meet customer personalized requirement,produce the customized machine for you
Saibainuo Company after sales service :
a.) Consultation service before, during, and after sales;
b.) Project planning and design services;
c.) Debugging of equipment until everything is functional;
d.) Management of equipments' long distance shipping from seller's factory to named place by buyer;
e.) Training of equipment maintenance and operating personally;
d.) New production techniques and formulas;
g.) Provide 1 year complete warranty and life-time maintenance service.
11.Our company
Saibainuo is a leading manufacturer of high quality Twin Screw Extruders for food industries.
We have almost ten years’ experience of working with our customers providing specialist designs
and practical solution for a wide range of process needs.
Factory standing area:30000 square meters
Workshop standing area:20000 square meters
Office area:4 floor with 600 square meters.
